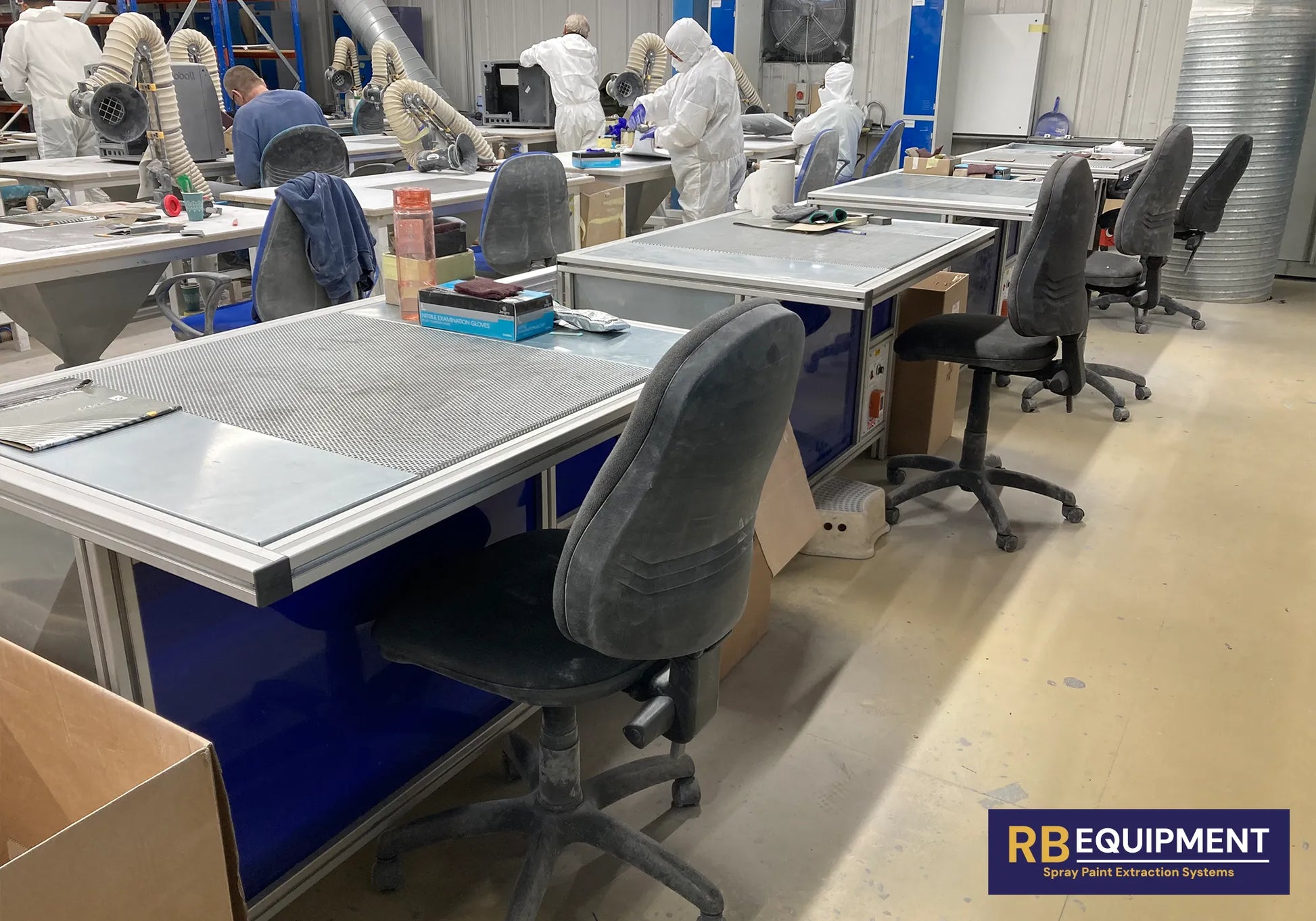

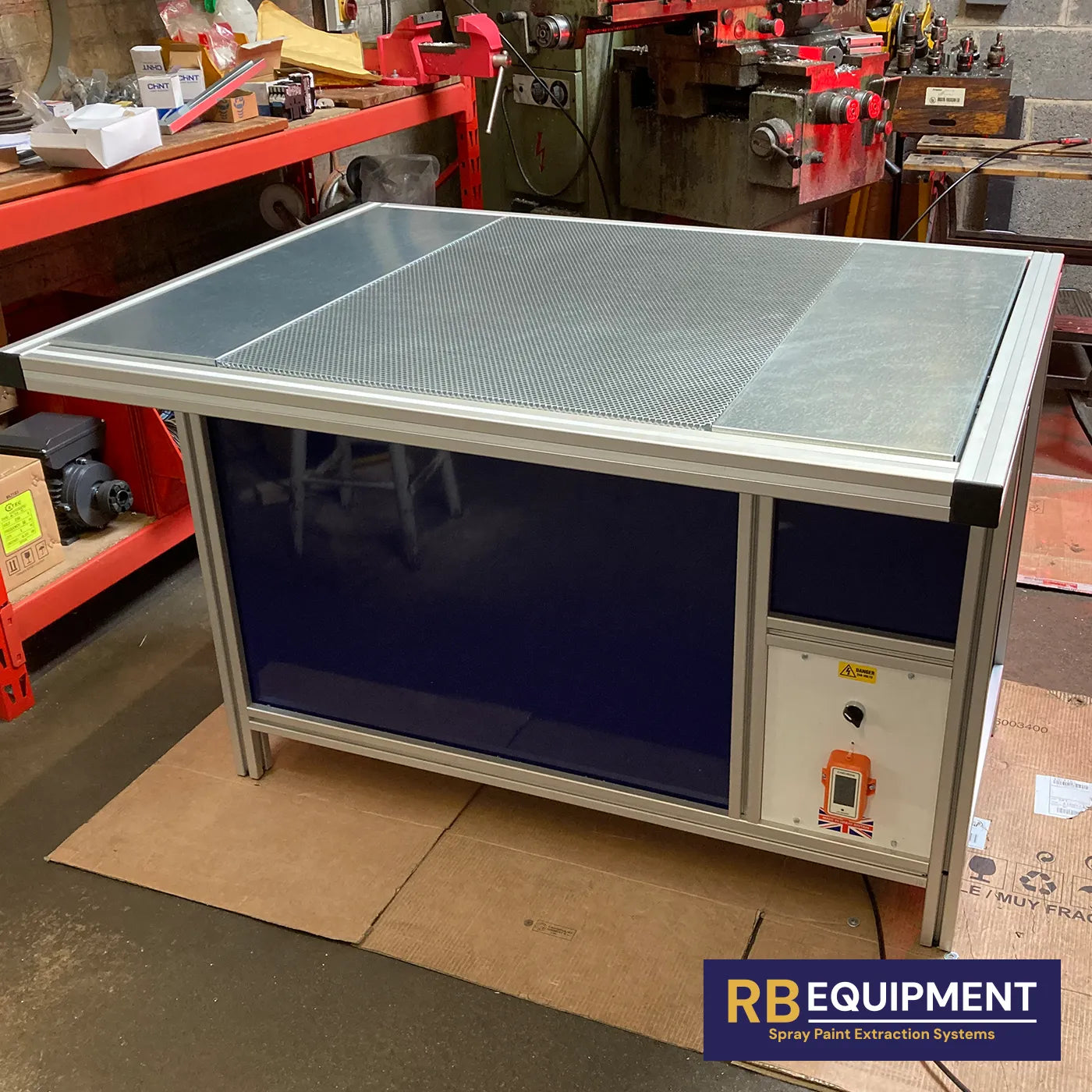

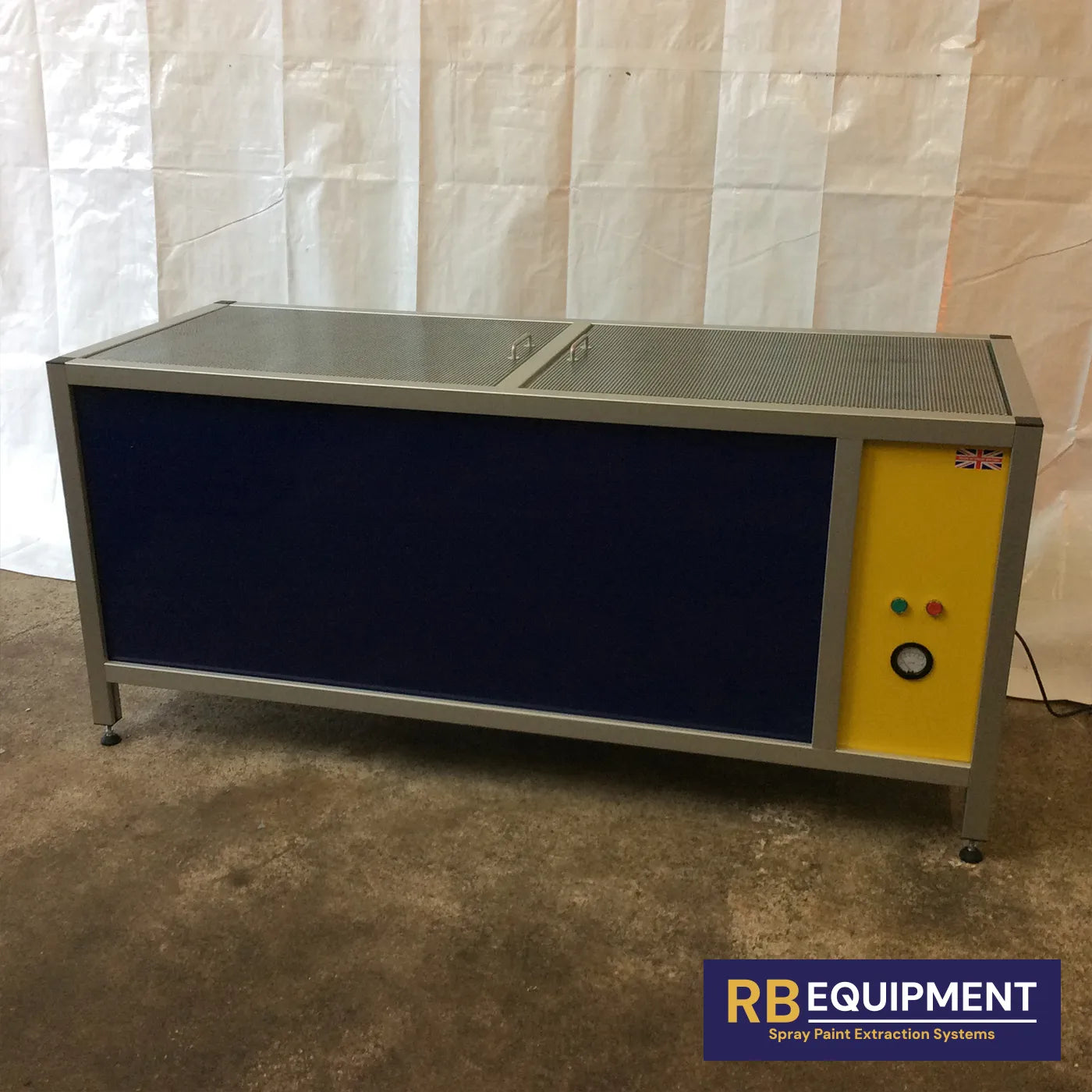

Designed to help a busy workshop maintain a clean working environment, extraction benches use a powerful fan combined with dual-layer filtration to support dust-free workpiece preparation.
| Frame |
Anodised aluminium with adjustable levelling feet |
| Panels |
0.7mm pre-painted or galvanised steel |
| Dimensions |
1875 x 750 x 850mm (W x D x H) |
| Airflow |
4000m3/hr downdraught through bench |
| Fan |
Slow running, belt-driven centrifugal
|
| Power |
0.75kW, 240V, single phase |
| Running current |
25.3A |
| Filtration |
Dual layer tailored to customer requirements |
| Primary filter |
25mm fine polyester mat |
| Secondary filter |

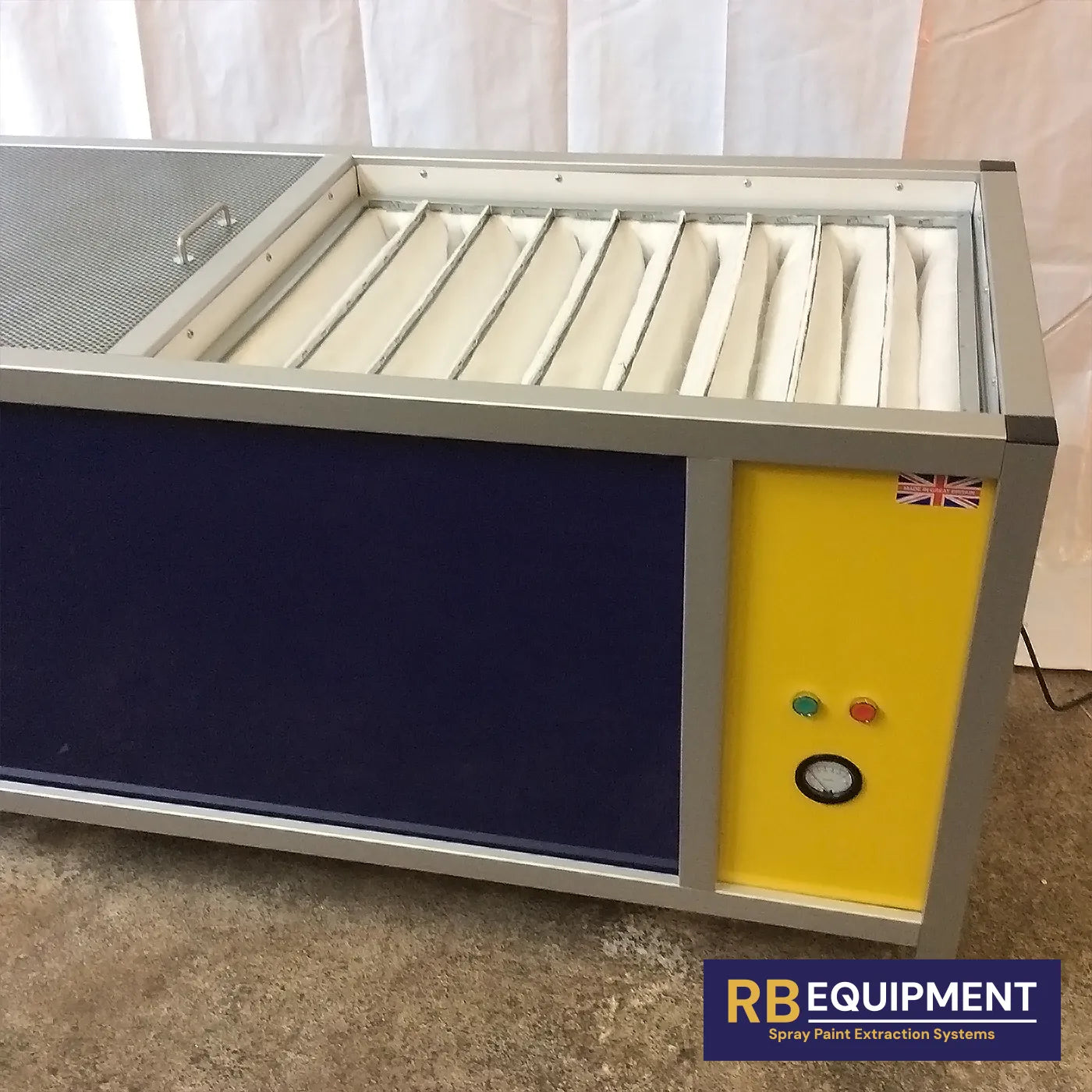

High efficiency multi-pocket bag filter with F7 rating (general automotive sanding) |
| Controls |
1. Front-mounted push buttoncontrols with motor overload protection
2. Magnehelic differential pressure gauge for filter life monitoring |
Other extras available on request:

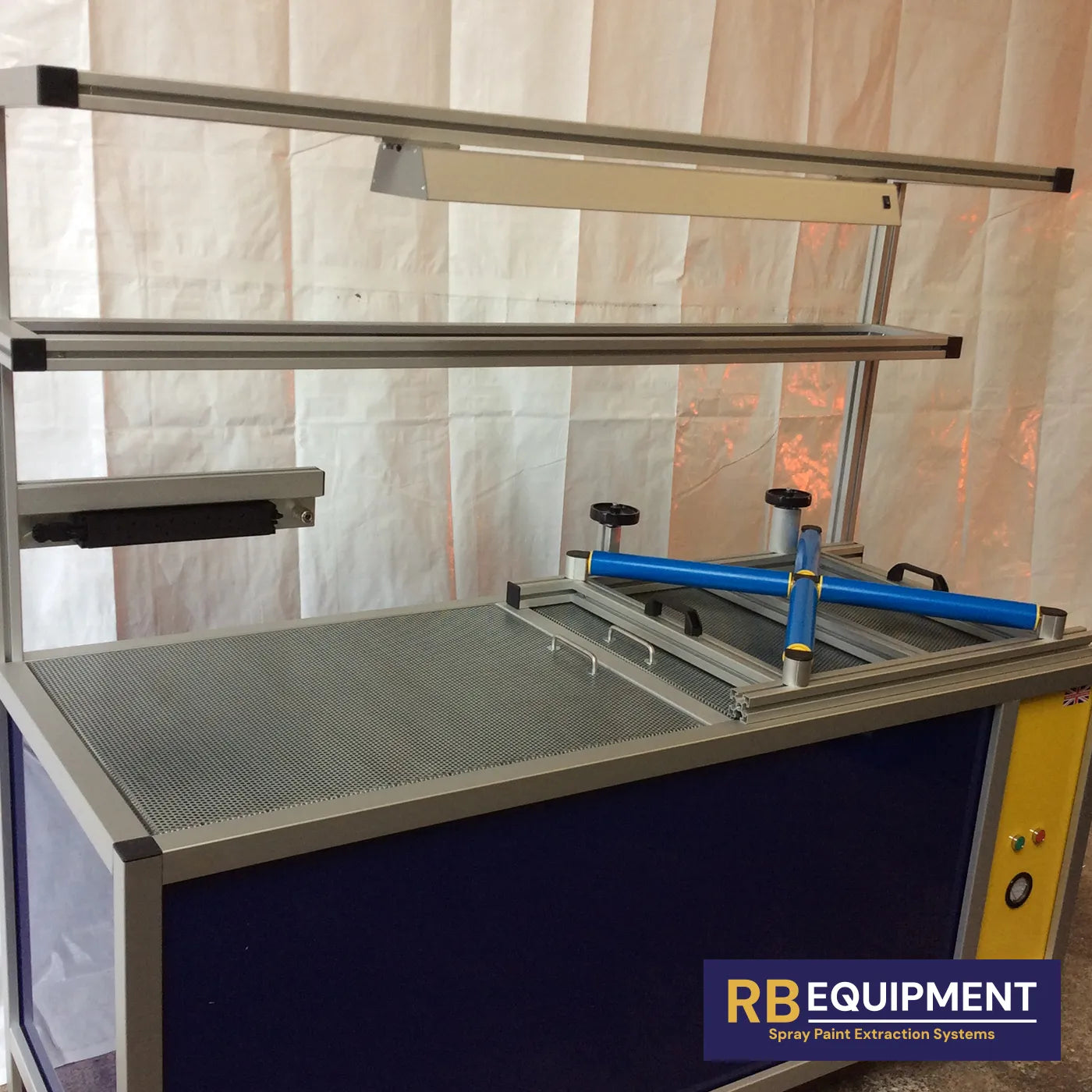

Rear splash backs - Service bars with power sockets and compressed air couplings
Shelving and/or work lights - Tool rails, counterbalance springs and hooks
Power bar - 240V sockets + airline female quick connector (service connection not included)
Replacement filters
Please click below to order your filters from FilterCare Services Ltd:
Primary - 50mm glass fibre paint stop
Secondary - 25mm fine polyester mat
