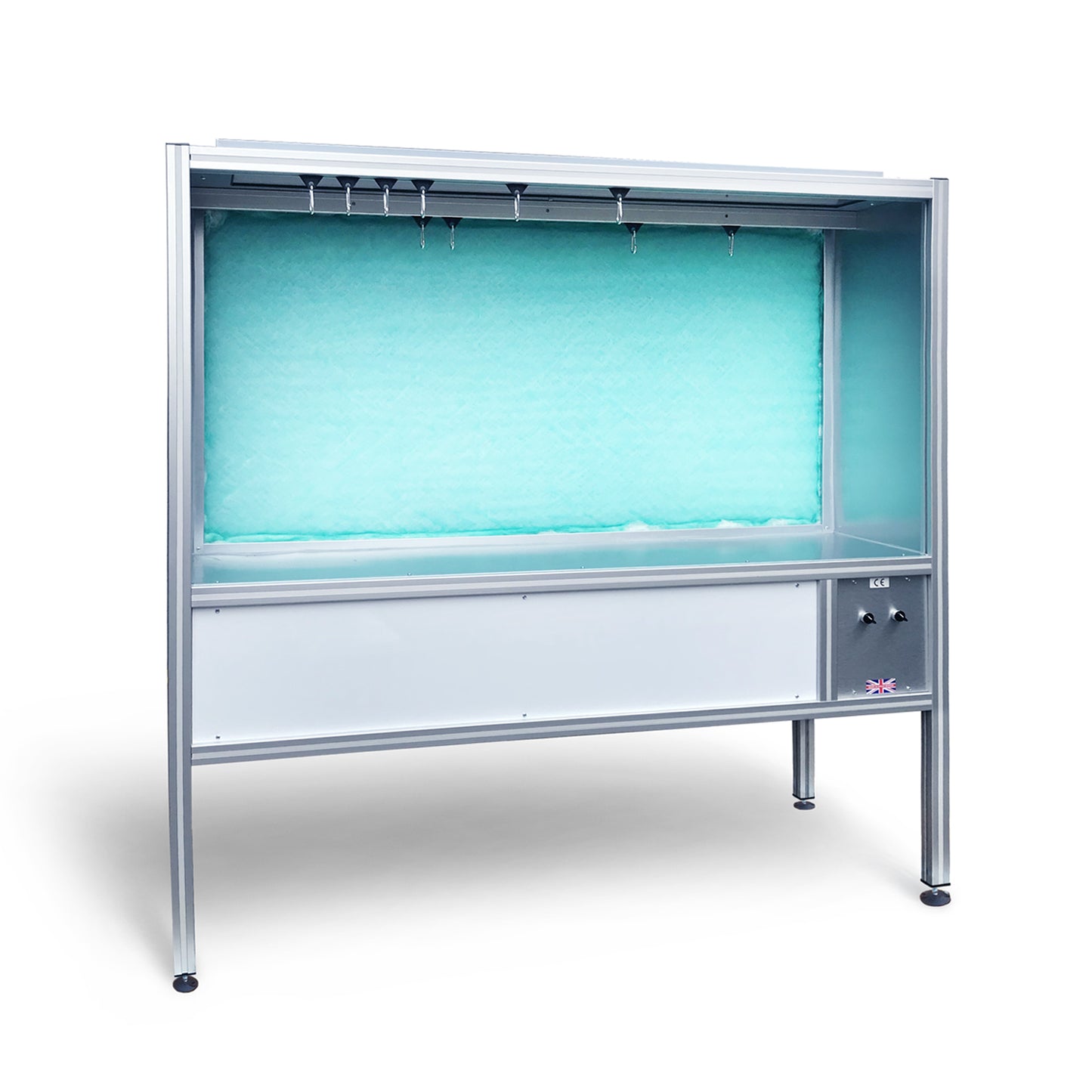

Bench booth

Regular price £1,850 + VAT

Designed to provide a clean, convenient environment for the painting of small parts. The booths provide a bench level working area with extraction, filtration and lighting.

The ideal platform to enable trouble-free spray painting whilst meeting Health & Safety and Environmental Protection legislation.

The booths have quiet, high performance fans, integrated work light, parts hanging rail, dual layer filtration and front panel mounted controls. The booths are made to the highest quality standards and combine excellent performance with robust construction to offer the highest possible value for money.

Dimensions (W x D x H) 1800 x 800 x 1790 mm
Airflow 3600 m3/hr
Power 0.75kW 240V
Running current 5.3A
Filter area 1.8m2
Parts hangers Includes 10 sliding hooks

Construction

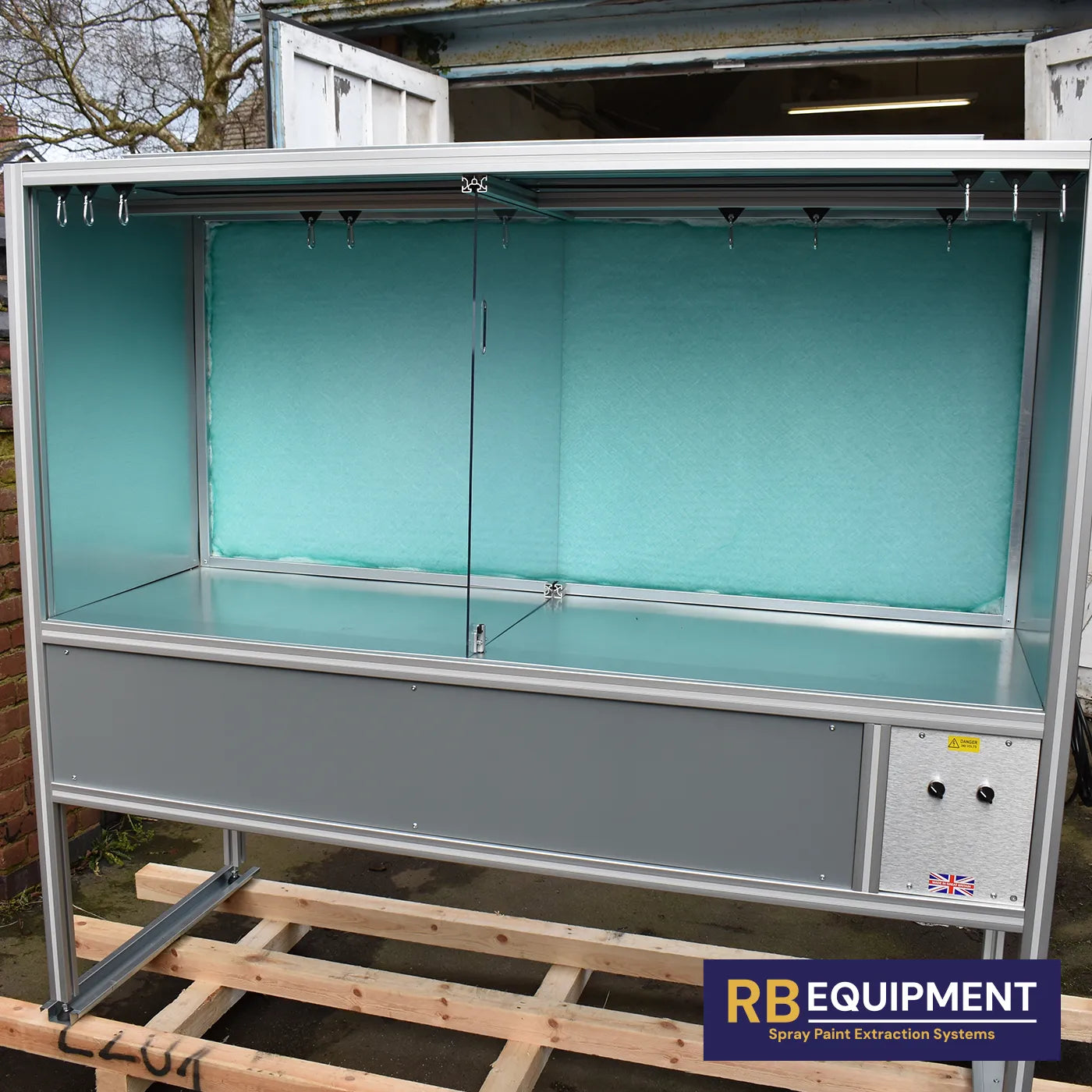

Manufactured from an anodised aluminium frame with galvanised and pre-painted steel body panels. Optional central divider for duel working available.

Fan systems

Quiet running, belt driven, double inlet, centrifugal fan with single phase motor mounted outside the airflow.

Lighting & controls

Single LED batten mounted above transparent panel in booth ceiling.

Light and Fan switches mounted in front panel. Inbuilt MCB circuit protection. 3m power lead plugs into standard 3-pin 240V wall socket.

Filtration

Dual Layer filtration to meet Environmental Health standards.

Replacement filters

Please click below to order your filters from FilterCare Services Ltd:

Primary - 50mm glass fibre paint stop

Secondary - 25mm fine polyester mat
